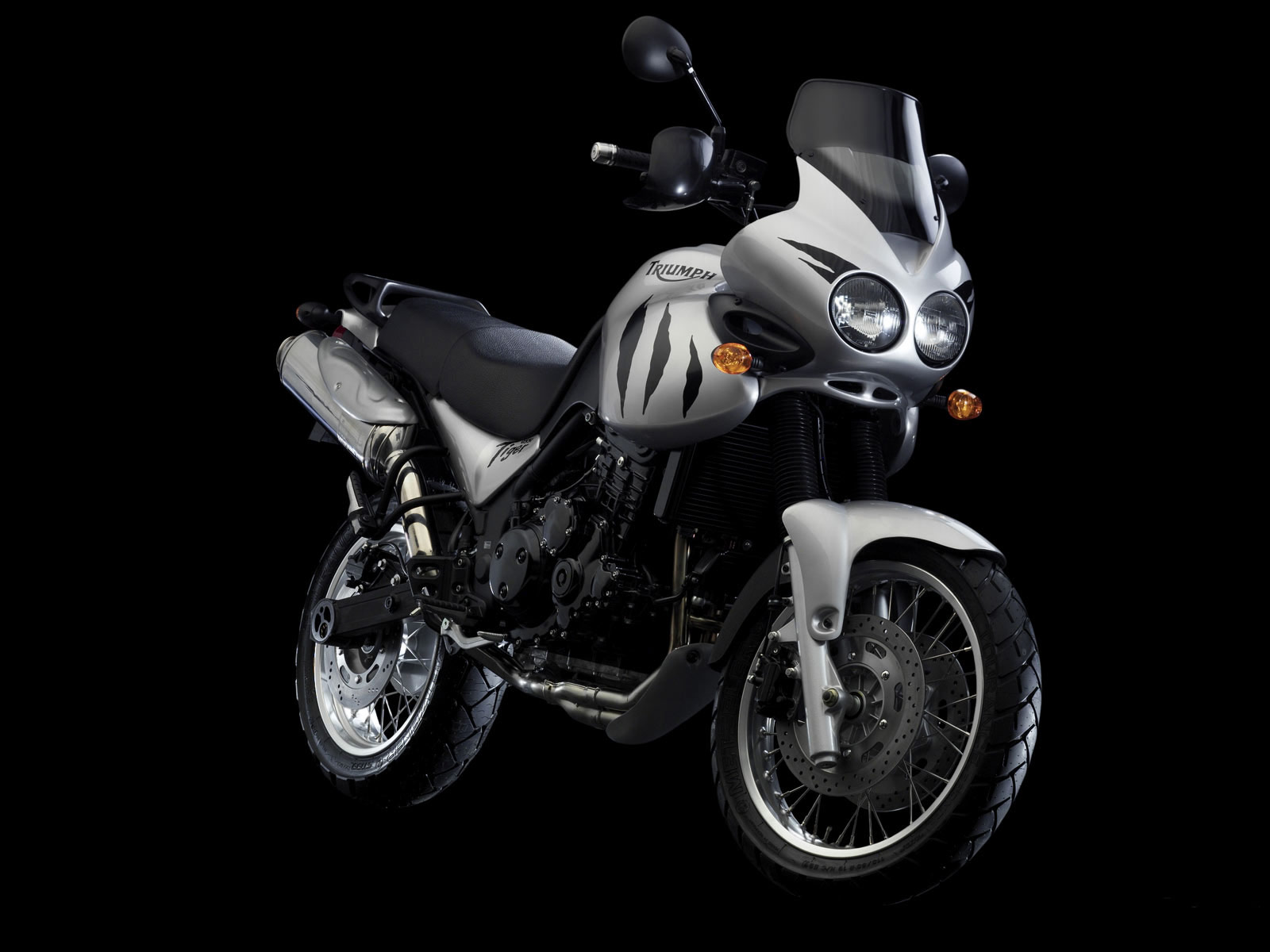

TRIUMPH Tiger (2005)
Click Thumbnail to download (size 1600 x 1200 pixels)
General Information
Model: Triumph Tiger
Year: 2004
Category: Enduro / offroad
Rating: 81.1 out of 100.
Engine and transmission
Displacement: 955.00 ccm (58.27 cubic inches)
Engine type: In-line three
Stroke: 4
Power: 104.00 HP (75.9 kW)) @ 9500 RPM
Torque: 92.00 Nm (9.4 kgf-m or 67.9 ft.lbs) @ 4400 RPM
Compression: 11.7:1
Bore x stroke: 79.0 x 65.0 mm (3.1 x 2.6 inches)
Fuel system: Injection
Fuel control: DOHC
Cooling system: Liquid
Gearbox: 6-speed
Physical measures
Dry weight: 215.0 kg (474.0 pounds)
Seat height: 840 mm (33.1 inches) If adjustable, lowest setting.
Alternate seat height: 860 mm (33.9 inches) If adjustable, highest setting.
Overall height: 1,370 mm (53.9 inches)
Overall length: 2,250 mm (88.6 inches)
Overall width: 860 mm (33.9 inches)
Wheelbase: 1,515 mm (59.6 inches)
Chassis and dimensions
Front tyre dimensions: 110/80-H 19
Rear tyre dimensions: 150/70-H 17
Front brakes: Double disc
Front brakes diameter: 310 mm (12.2 inches)
Rear brakes: Single disc
Rear brakes diameter: 285 mm (11.2 inches)
Speed and acceleration
Power/weight ratio: 0.4837 HP/kg
Other specifications
Fuel capacity: 24.00 litres (6.34 gallons)
